Model Whirlpool F8958^0 – Common Parts & Diagrams
09 - WIRE HARNESSES AND COMPONENTS
10 - WIRING DIAGRAM

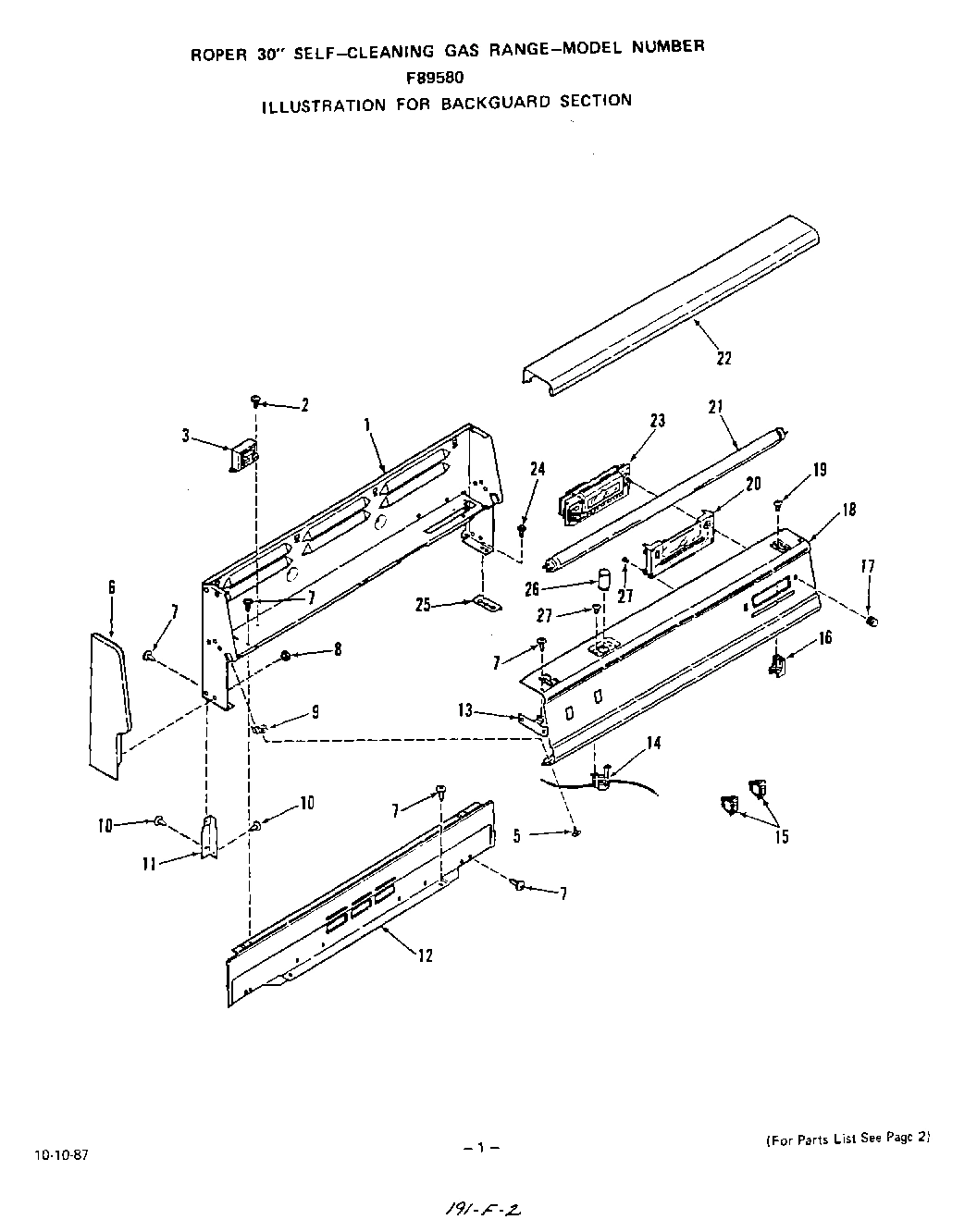

02 - BACKGUARD , LIT/OPTIONAL

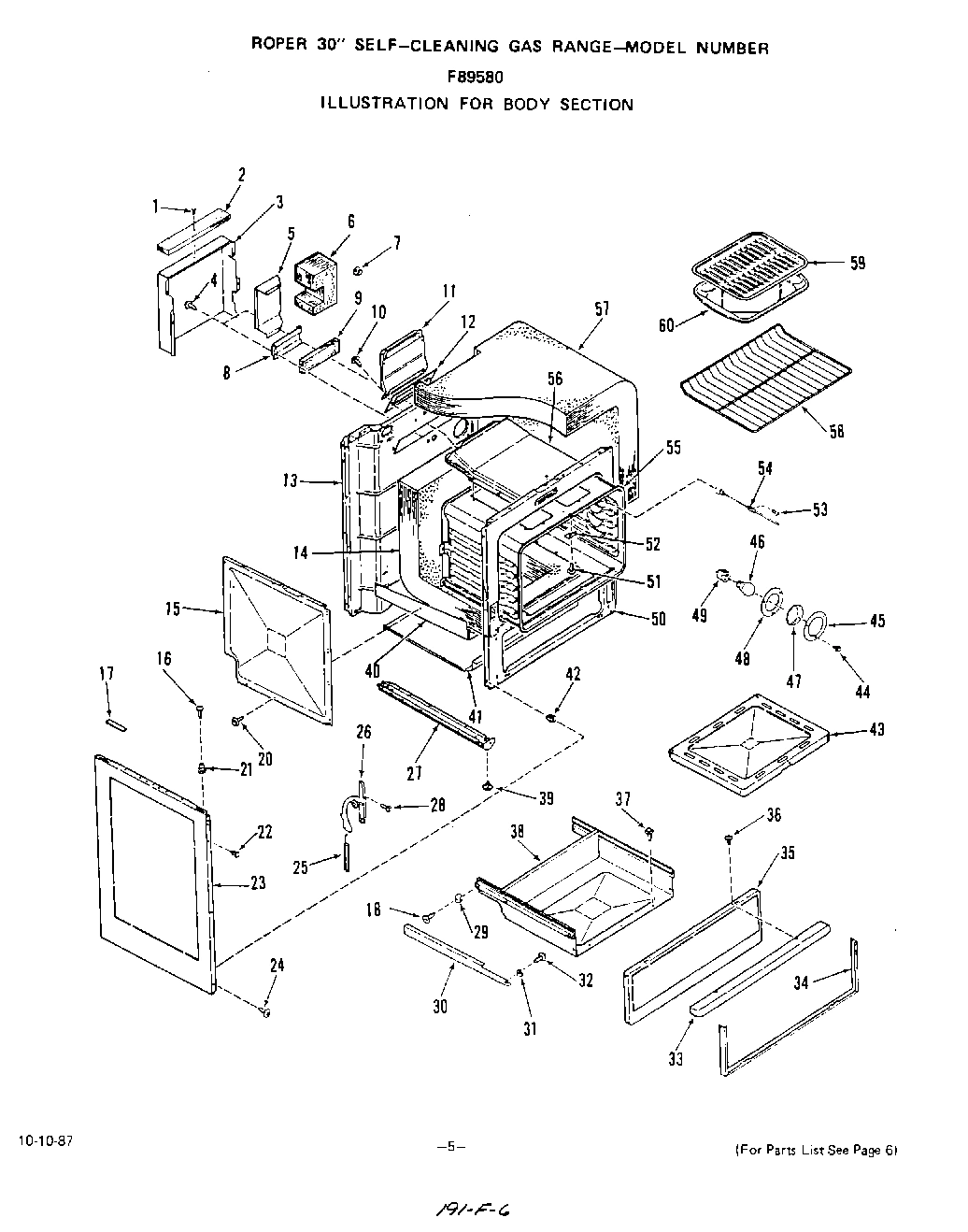

04 - BODY

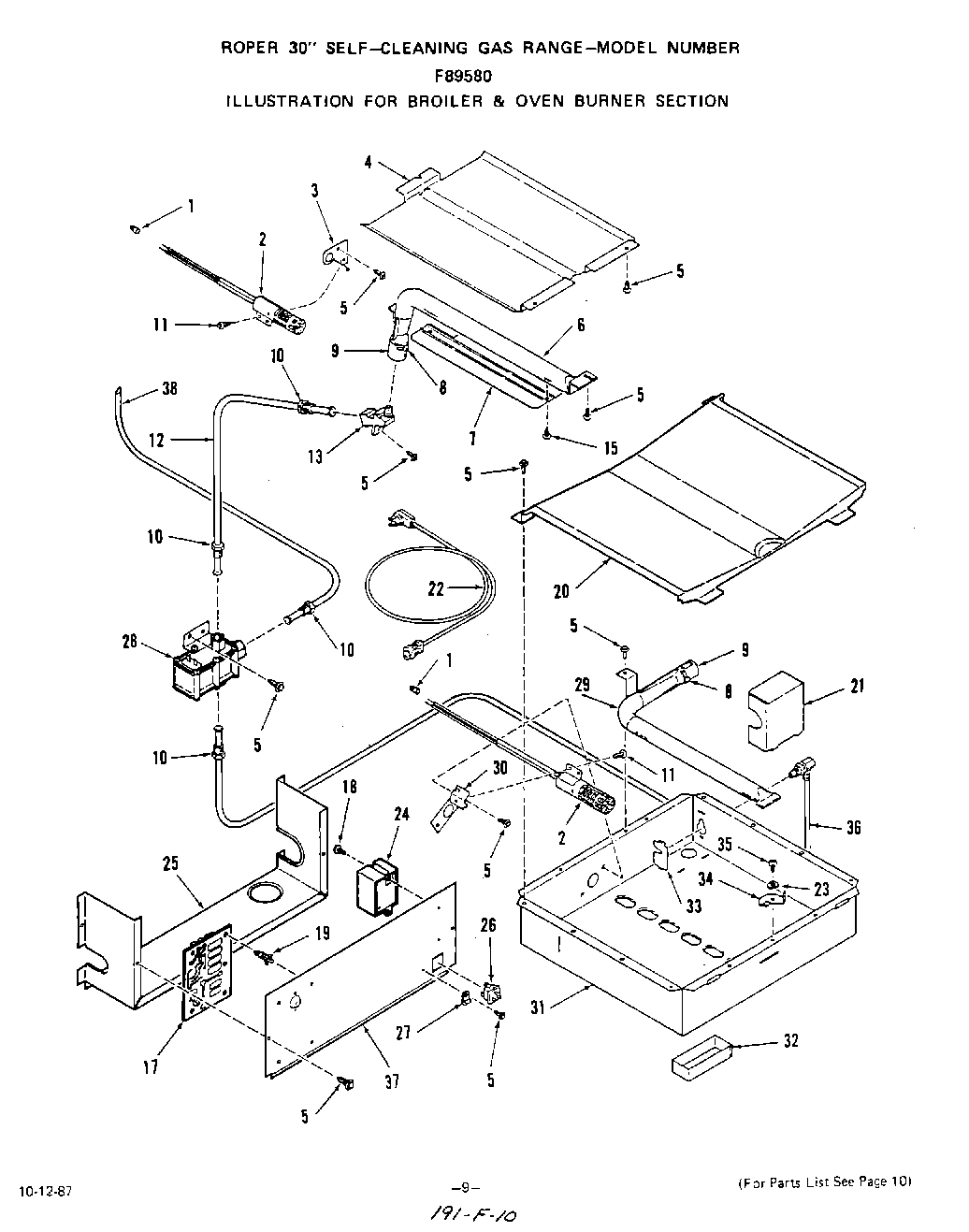

07 - BROILER AND OVEN BURNER

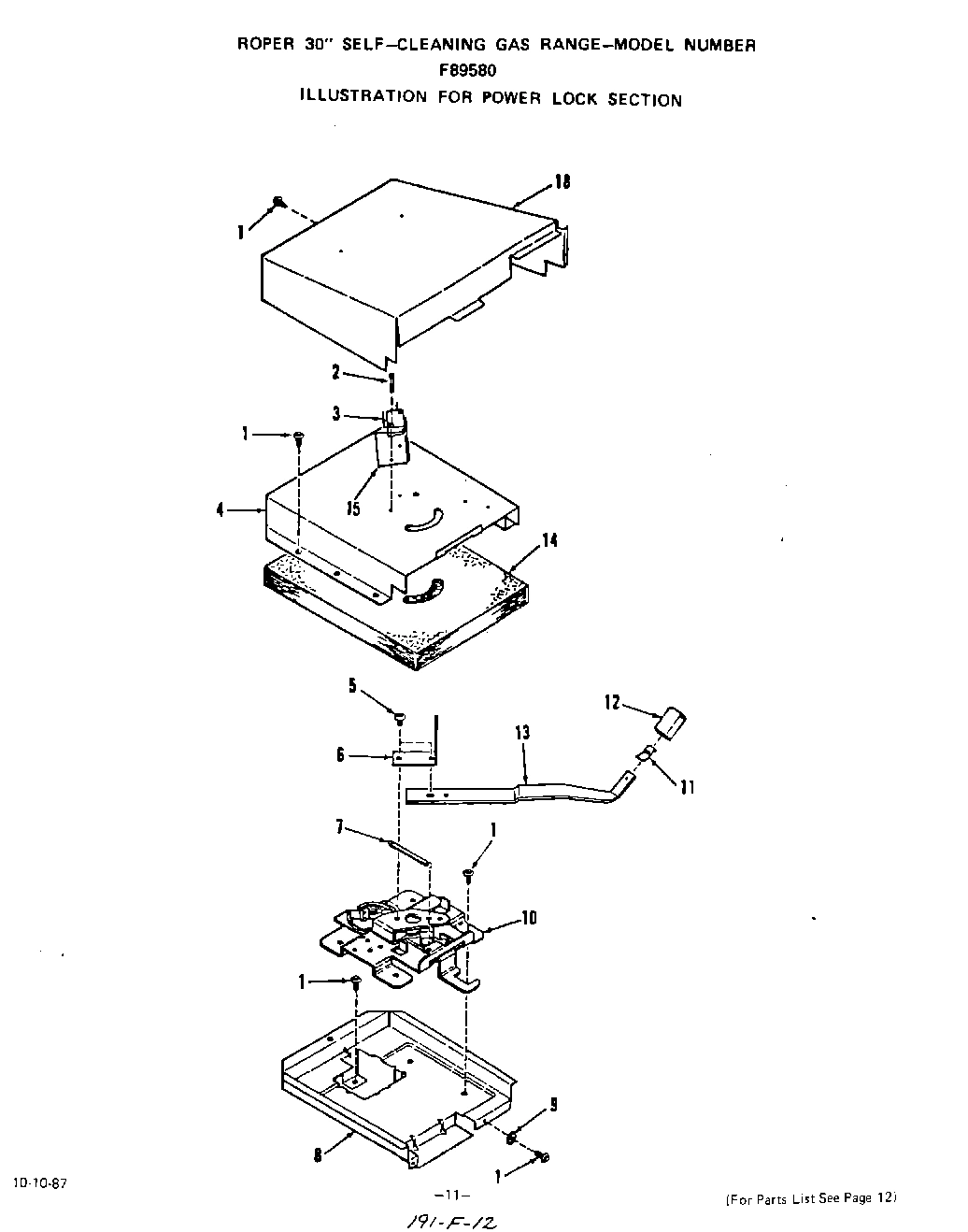

08 - POWER LOCK

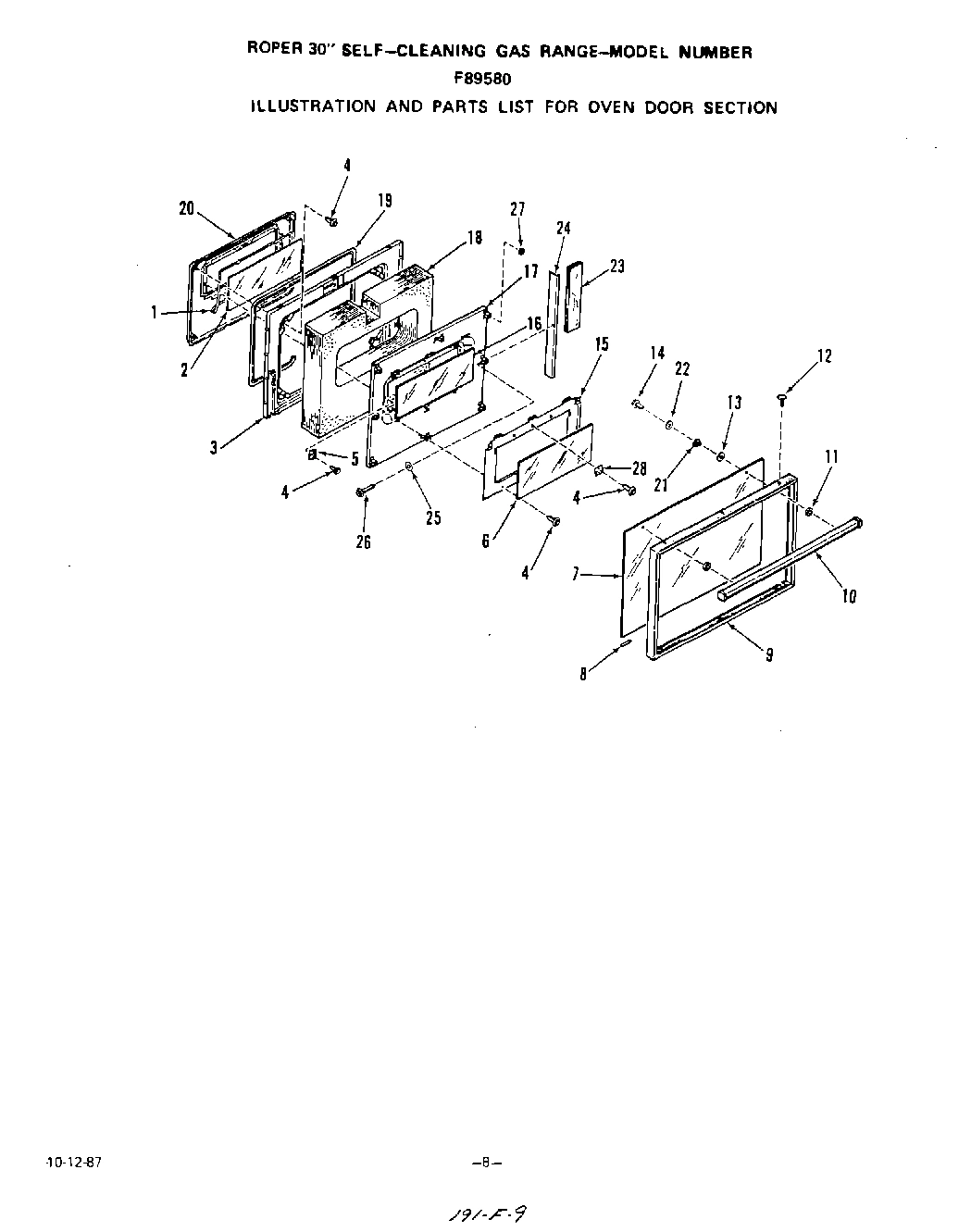

06 - OVEN DOOR

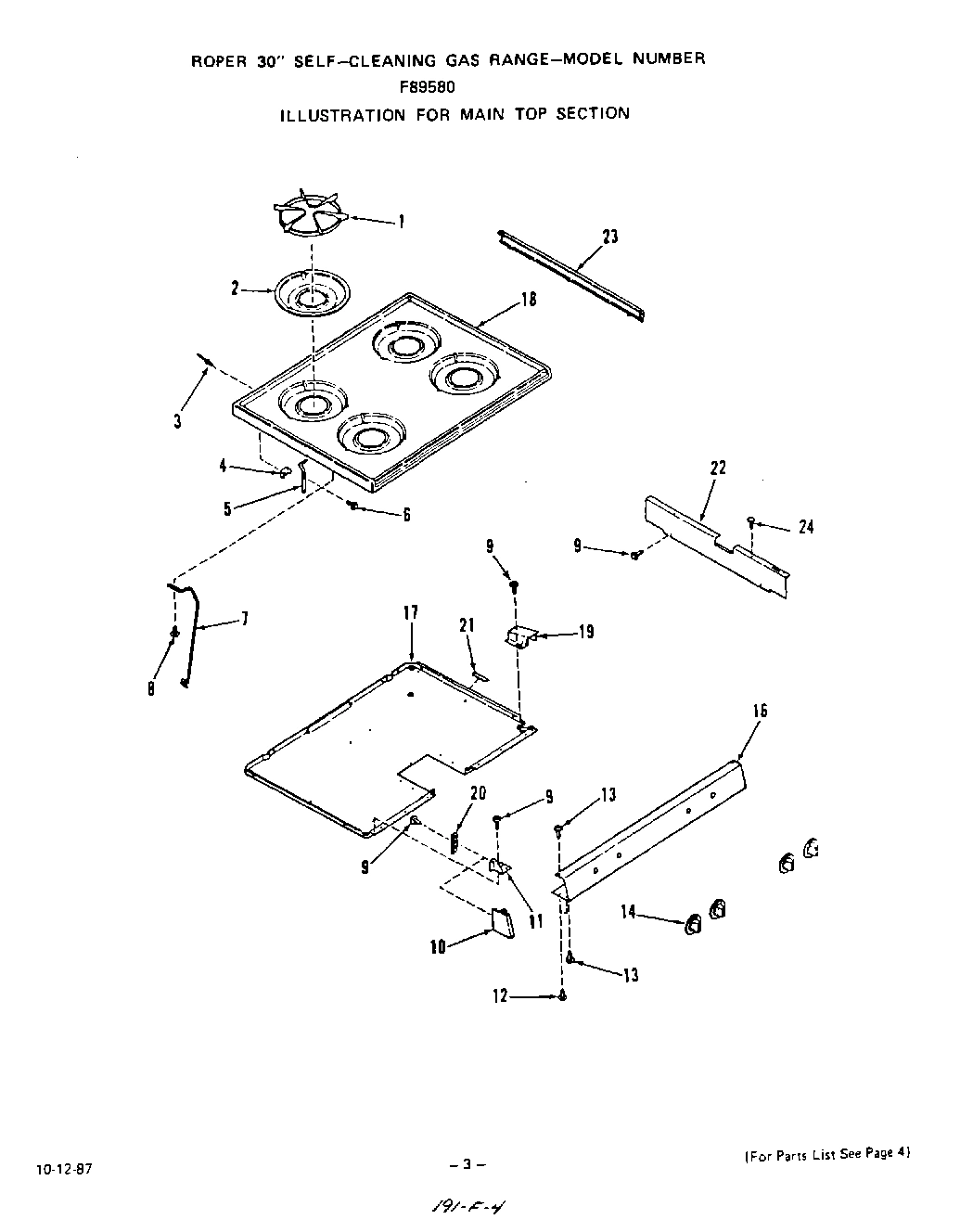

03 - MAIN TOP

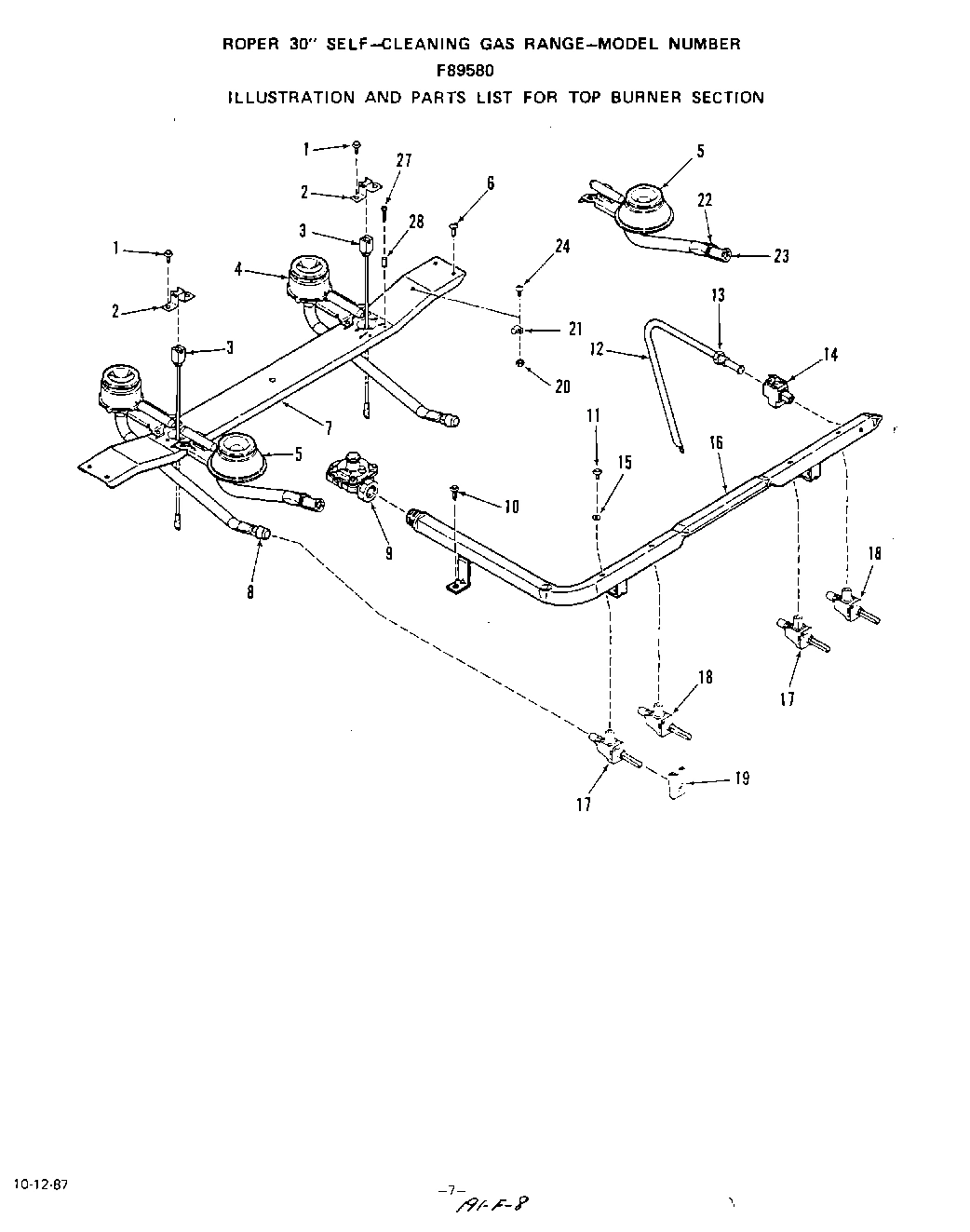

05 - TOP BURNER
Common parts from model Whirlpool F8958^0
1
Wire Harness (Switch-Gas Valve) WPL 329364 Contact Us For Availability
1
Wire Harness (Backguard) WPL 334802 Contact Us For Availability
1
Wire Harness (Relay) WPL 338404 Contact Us For Availability
1
Backguard Body WPL 338150 Contact Us For Availability
1
Dart Button WPL 296097 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
1
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
1
Inner Glass Seal WPL 302935 Contact Us For Availability
1
Top Burner Grate (4 Req) WPL 330242 Contact Us For Availability
2
Flag Terminal 1/4`` WPL STD374251 Contact Us For Availability
2
Insulation WPL 329834 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 337263 Contact Us For Availability
2
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
2
Inner Glass WPL 336442 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 332299 Contact Us For Availability
2
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Faston Terminal (.110-.020 (Switch Lead)) WPL STD374120 Contact Us For Availability
3
Faston Terminal (.110-.032 (Igniter Lead)) WPL STD374132 Contact Us For Availability
3
Faston Terminal (3/16``) WPL STD374180 Contact Us For Availability
3
Faston Terminal (1/4``) WPL STD374250 Contact Us For Availability
3
Ballast WPL 98186 Contact Us For Availability
3
Flue Deflector Shield WPL 328487 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
3
Micro Switch WPL 334932 Contact Us For Availability
3
Lining WPL 331624 Contact Us For Availability
3
Rivet WPL 338735 Contact Us For Availability
3
Electrode (Right) WPL 334510 Contact Us For Availability
3
Electrode (Left) WPL 334511 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
4
Cover-Lock Rod WPL 333628 Contact Us For Availability
4
Hinge Mounting Bracket WPL 335975 Contact Us For Availability
4
Rear Burner-Lt. or Rt.. (Inc`s. Key 8) WPL 333223 Contact Us For Availability
5
Screw WPL 335967 Contact Us For Availability
5
Wire Shield WPL 327808 Contact Us For Availability
5
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
5
Glass Retainer WPL 312888 Contact Us For Availability
5
Main Top Hinge (Right) WPL 320921 Contact Us For Availability
5
Main Top Hinge (Left) WPL 320922 Contact Us For Availability
5
Front Burner-Rt. (Inc`s Key 22 & 23) WPL 334818 Contact Us For Availability
6
End Cap (Right) WPL 333760 Contact Us For Availability
6
End Cap (Left) WPL 333761 Contact Us For Availability
6
Insulation WPL 335815 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
6
Extension-Handle WPL 335984 Contact Us For Availability
6
Intermediate Glass WPL 326088 Contact Us For Availability
6
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
6
Screw 6-32x3/8`` WPL 337857 Contact Us For Availability
7
Bushing WPL 324257 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
7
Spring WPL 313075 Contact Us For Availability
7
Outer Glass WPL 332067 Contact Us For Availability
7
Main Top Support Rod (2 Req) WPL 332284 Contact Us For Availability
7
Support-Top Burner WPL 338635 Contact Us For Availability
8
Pal Nut WPL 335776 Contact Us For Availability
8
Wire Shield WPL 327809 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
8
Lock Box WPL 333627 Contact Us For Availability
8
Cushion WPL 112370 Contact Us For Availability
8
Air Shutter WPL 327198 Contact Us For Availability
9
Backguard Clip WPL 337975 Contact Us For Availability
9
Insulation WPL 330166 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Washer WPL 21067 Contact Us For Availability
9
Frame WPL 332065 Contact Us For Availability
9
Pressure Regulator WPL 324528 Contact Us For Availability
10
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
10
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
10
Handle WPL 332452 Contact Us For Availability
10
End Cap (Right) WPL 333349 Contact Us For Availability
10
End Cap (Left) WPL 333350 Contact Us For Availability
11
Backguard Support (Right) WPL 334337 Contact Us For Availability
11
Backguard Support (Left) WPL 334338 Contact Us For Availability
11
Flue Deflector WPL 331564 Contact Us For Availability
11
Clip-Knob WPL 328474 Contact Us For Availability
11
Spacer WPL 107158 Contact Us For Availability
11
Manifold Panel Bracket (Right) WPL 333351 Contact Us For Availability
11
Manifold Panel Bracket (Left) WPL 333352 Contact Us For Availability
11
Screw (For Key 19) WPL 311455 Contact Us For Availability
12
Backguard Front Panel WPL 336660 Contact Us For Availability
12
Gasket WPL 336510 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
12
Knob-Lock WPL 335738 Contact Us For Availability
12
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
12
Tubing 3/8`` WPL 280436 Contact Us For Availability
13
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
13
Backguard Bracket WPL 335667 Contact Us For Availability
13
Main Back WPL 338314 Contact Us For Availability
13
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
13
Broiler Orifice Fitting WPL 331992 Contact Us For Availability
13
Handle-Latch WPL 333710 Contact Us For Availability
13
Washer WPL 333014 Contact Us For Availability
14
Starter Base WPL 334924 Contact Us For Availability
14
Insulation WPL 329146 Contact Us For Availability
14
Insulation-Latch WPL 328472 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
14
Gas Valve Knob (4 Req) WPL 338397 Contact Us For Availability
14
Shut Off Valve WPL 326830 Contact Us For Availability
15
Switch WPL 334649 Contact Us For Availability
15
Insulation Retainer WPL 333704 Contact Us For Availability
15
Insulator-Switch WPL 329171 Contact Us For Availability
15
Glass Mounting Plate WPL 328615 Contact Us For Availability
15
Gasket (For Key 14 & 19) WPL 313563 Contact Us For Availability
16
Lamp Holder WPL 334173 Contact Us For Availability
16
Center Glass WPL 338108 Contact Us For Availability
16
Manifold Panel WPL 335321 Contact Us For Availability
16
Manifold Pipe WPL 338398 Contact Us For Availability
17
Clock Knob WPL 334914 Contact Us For Availability
17
Main Top Spacer WPL 335320 Contact Us For Availability
17
Relay Circuit Board WPL 335245 Contact Us For Availability
17
Insulation Retainer WPL 328623 Contact Us For Availability
17
Burner Box Bottom WPL 333547 Contact Us For Availability
17
Gas Valve - Rear WPL 338396 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
18
Control Panel WPL 335418 Contact Us For Availability
18
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
18
Wire Cover-Latch Switches WPL 333694 Contact Us For Availability
18
Insulation WPL 335782 Contact Us For Availability
18
Main top (White) WPL 332318 Contact Us For Availability
18
Main Top (Almond) WPL 332324 Contact Us For Availability
18
Gas Valve - Front WPL 338663 Contact Us For Availability
19
Screw 6-32x3/8`` WPL 89022 Contact Us For Availability
19
Spacer PC WPL 334955 Contact Us For Availability
19
Gasket WPL 292244 Contact Us For Availability
19
Wire Cover WPL 334266 Contact Us For Availability
19
Switch-Gas Valve WPL 338399 Contact Us For Availability
20
Clock Lens WPL 334898 Contact Us For Availability
20
Cleat WPL 335977 Contact Us For Availability
20
Baffle-Oven Burner WPL 335196 Contact Us For Availability
20
Plug Lining WPL 335165 Contact Us For Availability
20
Nut 8-32 WPL 239764 Contact Us For Availability
21
Fluorescent Lamp WPL 334193 Contact Us For Availability
21
Strike WPL 333892 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
21
Glass Spacer WPL 333015 Contact Us For Availability
21
Tubing Spacer WPL 335760 Contact Us For Availability
21
Clip WPL 106767 Contact Us For Availability
22
Canopy Panel WPL 334176 Contact Us For Availability
22
Rivet WPL 281160 Contact Us For Availability
22
Range Service Cord WPL 332479 Contact Us For Availability
22
Washer WPL 99279 Contact Us For Availability
22
Extension-Burner Box Bottom Side (Right) WPL 334306 Contact Us For Availability
22
Extension-Burner Box Bottom Side (Left) WPL 334309 Contact Us For Availability
22
Adjustment Screw WPL 301911 Contact Us For Availability
23
Clock WPL 338692 Contact Us For Availability
23
Body side (White) WPL 335826 Contact Us For Availability
23
Body Side (Almond) WPL 335830 Contact Us For Availability
23
G.M. Screw 8-32x3/16`` WPL 155021 Contact Us For Availability
23
Insulation WPL 335781 Contact Us For Availability
23
Main Top Trim (Right) WPL 332281 Contact Us For Availability
23
Main Top Trim (Left) WPL 332282 Contact Us For Availability
23
Air Shutter WPL 301910 Contact Us For Availability
24
Screw 10 - 32 x 7/16`` WPL 102429 Contact Us For Availability
24
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
24
Baffle-Side WPL 335780 Contact Us For Availability
24
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
24
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
25
Oven Door Spring WPL 326965 Contact Us For Availability
25
Mounting Bracket-Components WPL 338167 Contact Us For Availability
25
Washer WPL 323451 Contact Us For Availability
26
Lamp Starter WPL 334104 Contact Us For Availability
26
Oven Door Hinge (Right) WPL 334632 Contact Us For Availability
26
Oven Door Hinge (Left) WPL 334633 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
Screw 10ABx1 WPL 105799 Contact Us For Availability
27
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
27
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
27
Base w/Levelers WPL 334811 Contact Us For Availability
27
Clip WPL 335798 Contact Us For Availability
27
Felt Washer WPL 335945 Contact Us For Availability
28
Control Valve WPL 306267 Contact Us For Availability
28
Retainer WPL 326009 Contact Us For Availability
28
Eyelet WPL 335718 Contact Us For Availability
29
Slide Block-Rear WPL 281913 Contact Us For Availability
29
Oven Burner WPL 333746 Contact Us For Availability
30
Storage Drawer Support WPL 311441 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
31
Slide Block-Front WPL 281914 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
32
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
33
Handle WPL 332205 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
34
Frame WPL 332161 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
35
Front Panel WPL 338164 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
36
Screw WPL 336529 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 331994 Contact Us For Availability
37
Component Bracket Cover WPL 338160 Contact Us For Availability
38
Storage Drawer WPL 338189 Contact Us For Availability
38
Tubing 3/8`` (Control Valve to Shut-Off Valve WPL 231899 Contact Us For Availability
39
Leg Leveler WPL 326052 Contact Us For Availability
40
Insulation Retainer WPL 331144 Contact Us For Availability
41
Vent Baffle WPL 338161 Contact Us For Availability
43
Oven Bottom WPL 335231 Contact Us For Availability
45
Oven Light Lens Retainer WPL 229372 Contact Us For Availability
46
Oven Lamp Bulb WPL 111257 Contact Us For Availability
47
Oven Lamp Lens WPL 114989 Contact Us For Availability
48
Lens Gasket WPL 229371 Contact Us For Availability
49
Oven Lamp Holder WPL 87883 Contact Us For Availability
50
Oven Frame WPL 338305 Contact Us For Availability
52
Cover WPL 304835 Contact Us For Availability
53
Screw WPL 293121 Contact Us For Availability
54
Sensor WPL 334300 Contact Us For Availability
55
Oven Body WPL 337039 Contact Us For Availability
56
Flue Box WPL 327781 Contact Us For Availability
57
Insulation-Top & Side WPL 329147 Contact Us For Availability
58
Oven Rack (Non-Folding) WPL 326069 Contact Us For Availability
58
Oven Rack (Folding) WPL 338368 Contact Us For Availability
59
Broiler Pan Grid WPL 326297 Contact Us For Availability
60
Broiler Pan WPL 331592 Contact Us For Availability
× ![]()
